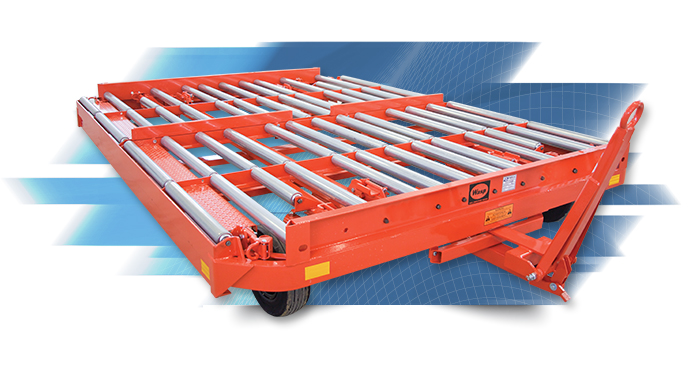

Double Container Dolly
Experience the versatility of dollies that are capable of moving as much as 7,000 pounds (3,175 kilograms) in two LD-1, LD-2 or LD-3 containers. They also can take on a single LD-4, LD-8 or LD-11 container.
Features
- Radius-cut corners minimize damage from collisions.

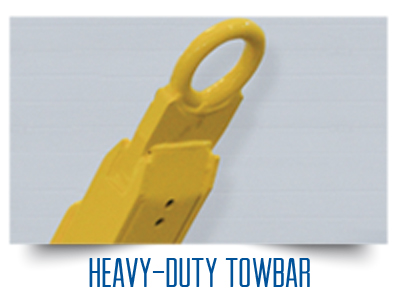

- Double Ackerman steering with an integrated dolly and towbar design provides correct tracking to prevent jackknifing and damage.
- Sealed bearings minimize contaminants and maintenance for less downtime.

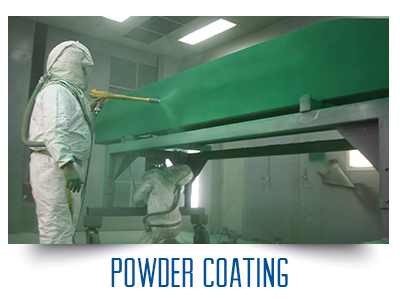

- U.S. military-grade powder coating provides endurance and customization.
Options
- Optional hot-dip galvanizing provides additional corrosion resistance.
- Choose towbar-actuated front-wheel brakes or lever-controlled rear-wheel brakes for securing the dolly in place.
Specifications
Steering |
Single or Double Ackerman |
|---|---|
Weight |
1,800 pounds (816 kg) |
Tires |
4-by-8-by-15-3/4-in. (10.2-by-20.3-by-40-cm) diameter solid rubber |
Rims |
7- or 9-gauge, 5-bolt, 4-1/2-in. (11.4-cm) BC, 2-piece demountable |
Reflectors |
8 3-inch-diameter reflectors, with amber on the front and red on the rear |
Hubs
|
1-3/8-in. (3.5-cm) diameter with sealed Timken bearings |
Track Width
|
60 in. (1.5 m) |
Tie Rod Ends
|
3/4-in. (19-mm) automotive type |
Bed Rollers
|
2-1/2-in. (6.4-cm) diameter with sealed bearings |
Container Stops
|
Manual-over-center type with vertical restraint |
Rear Hitch
|
E-hitch and pintle hook |
