Knockdown Baggage/Cargo Carts
Reduce shipping costs and retain capacity with this innovative cart. Knock them down for shipping, and reassemble them upon arrival with just hand tools.
Features

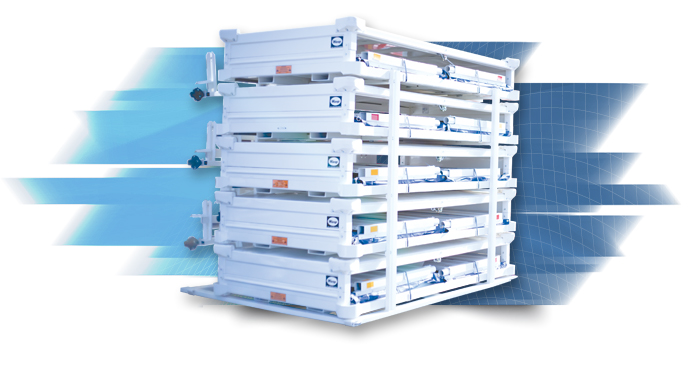

- Knock down each cart to half of its size and stack three to five high for shipping. Quickly reassemble with just hand tools by following the illustrated instructions.

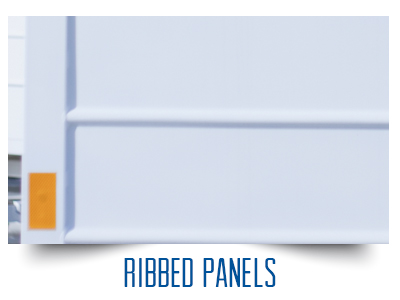

- Thicker-gauge steel, more strengthening ribs, strong welds, premium hardware and a shot-blast/powder-coat process ensure the cart will last and work efficiently for years.
- Integrated towbars prevent damage from jackknifing and enhance durability.
- Roll-on/roll-off capability allows easy maneuverability.
Options
- Designed to suit any customer requirement with options for center shelves, back walls and curtain assemblies in baggage or cargo configurations.
- Choose from rigid mount, shock mount or torsion axle configurations to suit any environment.
- Hot-dip galvanizing provides greater corrosion resistance.
Specifications
Capacity |
8,000 lbs. (3,629 kg) |
|---|---|
Weight |
1,636 lbs. (742 kg) |
Length
|
120-144 in. (305-366 cm) |
Width
|
67 in. (1.7 m) |
Height
|
80.25-82.5 in. (2-2.1 m) |
Track Width
|
52.75 in. (134 cm) |

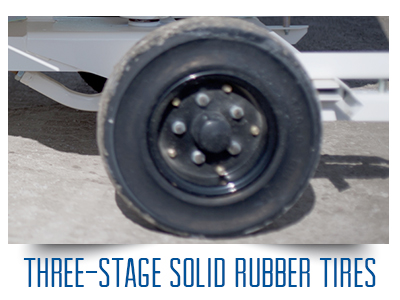

Tires
|
Solid 4-by-8-in., 16-in. diameter with 9-gauge, 5-bolt, 4.5-in. BC, 2-piece demountable rims |
King Pin
|
2-in. diameter stress-proof with sealed Timken bearings |
Rear Hitch
|
Spring-loaded E-hitch; additional options available |
Corner Bumpers
|
Smooth vinyl or optional Magee Finned |
Curtains
|
Vinyl with webbed reinforcement |
Running Gear
|
Rigid mount or 4-wheel independent rubber torsion axles |
