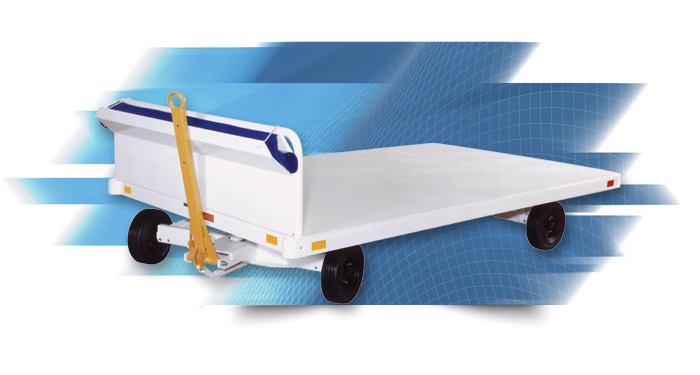

Flat-Bed Cargo Carts
Quickly load and move cargo on this 11.5-foot (3.5-meter) sturdy, expertly engineered cart.
Features

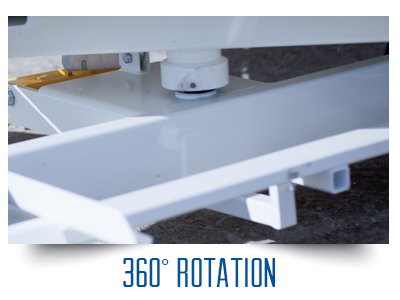

- Fifth-wheel steering with full 360-degree rotation ensures the cart tracks correctly in any direction. This minimizes the potential for damage or accidents and maximizes maneuverability.
- Heavy-duty construction allows the cart to haul as much as 8,000 pounds (3,629 kilograms) at 20-25 mph (32-40 kph) towing speeds.
- Anti-friction Timken bearings are permanently lubricated and sealed to keep out contaminants and reduce maintenance time.

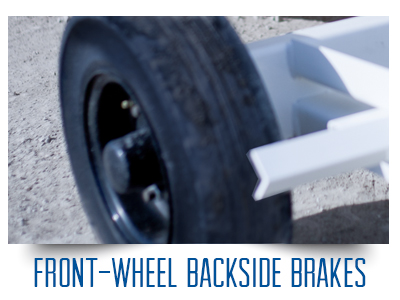

- Towbar-actuated front-wheel brakes make it easy to secure the cart to prevent rollaways.

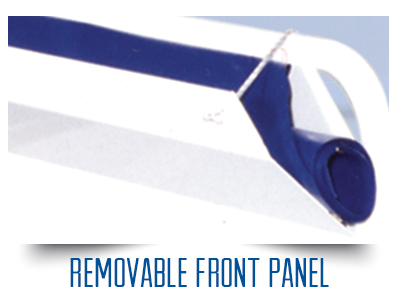

- A removable front panel and storable tarp keep the baggage contained and dry during rain showers.
- U.S. military-grade powder coating protects your investment. Custom colors are available.
Options
- Optional hot-dip galvanizing provides added protection.
Specifications
Capacity |
8,000 pounds (3,629 kg) |
|---|---|
Weight |
1,500 pounds (680 kg) |
Track Width |
61.25 in. (156 cm) |
Rims
|
9-gauge, 5-bolt, 4-1/2-in. BC, 2-piece demountable |
Tires
|
4-by-8-inch (10.2-by-20.3-cm) solid |
Wheel Spindles |
1-5/8-in. (4.1-cm) diameter replaceable |
Hubs
|
1-1/4-in. (3.2-cm) diameter sealed tapered roller bearings |
Axle Tubes
|
5-by-2-by-3/16-inch (12.7-by-5.1-by-0.48-cm) wall, rectangular tubing |
King Pin
|
2-in. (5.1-cm) diameter stress-proof with sealed Timken bearings |
Rear Hitch
|
Spring-loaded E-hitch; additional options available |
Reflectors
|
Per customer specification |
