Enclosed Carts

wasp-gse-baggagecarts-enclosed

wasp-gse-carts-enclosed-feature-curtainswasp-gse-carts-enclosed-feature-brakewasp-gse-carts-enclosed-feature-shelf

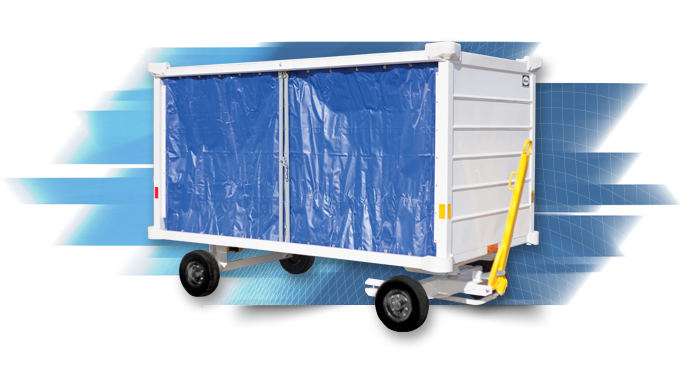

Move more baggage faster with a large-capacity, reinforced steel cart designed and built for years of rugged use. Each cart features more ribs, quality welds, bolted-on running gear and webbing-lined vinyl curtains to make sure it holds up better and longer than others on the market

download-specsrequest-info

Features

  • An integrated towbar allows for safe movement at 20-25 mph (32-40 kph) while preventing damage caused by breakage and jackknifes.
  • Solid welds keep seams tight and the weather out to protect as much as 8,000 pounds (3,629 kilograms) of baggage from the elements.
  • Thicker steel and more ribs than any other carts reinforce strength.
  • Bolted-on running gear on the front and rear axles allows for easy replacement with no cutting or welding required.
  • Towbar-actuated front-wheel brakes easily secure the cart to prevent rollaways.

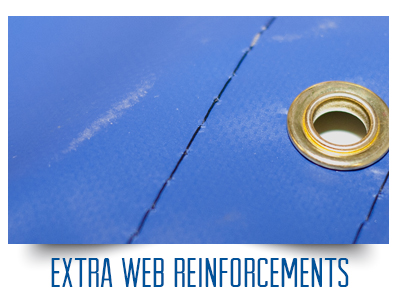

  • Durable vinyl curtains feature webbing every 10-12 inches (25-30 centimeters) to prevent rips and tears.
  • Full 360-degree, fifth-wheel rotation allows the carts to track correctly in any direction for safety and easy maneuverability.
  • Anti-friction Timken bearings are permanently lubricated and sealed to eliminate contamination and reduce maintenance.
  • Smooth, vinyl-padded corner bumpers minimize damage should an aircraft strike occur.
  • U.S. military-grade powder coating protects your investment. Custom colors are available.

Options

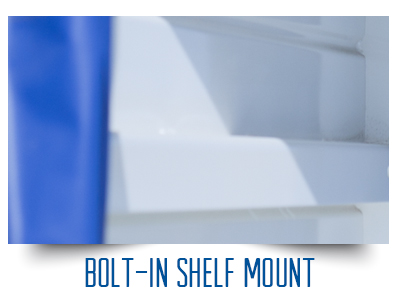

  • Bolt-in shelves, flat or V-style floors and side openings can all be customized to your specifications.
  • Choose from either 5-by-10-foot (1.5-by-3 meter) or 5-by-12-foot (1.5-by-3.7 meter) cart sizes.
  • Solid or pneumatic tire options on rigid-mounted running gear offer further customization for the needs of each jobsite.
  • Choose four-wheel, independent, rubber torsion axles rather than a rigid-mount cart so each axle can be replaced individually. This reduces maintenance expenses and downtime.
  • Hot-dip galvanizing provides greater corrosion resistance.

Specifications

Capacity
  5,000-8,000 pounds (2,268-3,629 kg)
Weight
  1,300-1,500 pounds (590-680 kg)
Track Width
 52.75 inches (1.34 meters)
Rims
 9 gauge, 5-bolt, 4.5-inch BC, 2-piece demountable
Rear Hitch
 Spring-loaded E-hitch; additional options available
Wheel Spindles
 1-5/8-in. (4.1-cm) diameter, replaceable
King Pin
 2-in. (5-cm) diameter stress-proof with sealed Timken bearings
Hubs
 1.25-in. (3.2-cm) diameter sealed, tapered roller bearings
Axle Tubes
 5 x 2 x 3/16-in. (127 x 50.8 x 4.8-mm) wall, rectangular tubing
Body Panels
 16-gauge, CR sheet
Floor Panels
 12-gauge, CR sheet, flat or V-style
Reflectors
 Eight 3-inch (7.6-cm) diameter amber on front and red on rear; additional options available
Corner Bumpers
 Smooth vinyl or optional Magee Finned
Curtains
 Vinyl with webbed reinforcement
Chain Gates
 2/0, zinc-plated machine chain
Tires
 Options Include:

  • Solid 4-by-8-in. (10-by-20-cm), 16-in. (40.6-cm) diameter
  • 5-by-8-in. (12.7 x 20-cm), 18-in. (45.7-cm) diameter
  • Pneumatic or foam-filled tires in 4.8-by-8-inch (12.2-by-20-cm), 5.7-by-8-in. (14.5-by-20 cm) or 6.9 x 9-in. (17.5-by-22.9-cm) options
Running Gear
 Rigid mount or four-wheel independent rubber torsion axles
